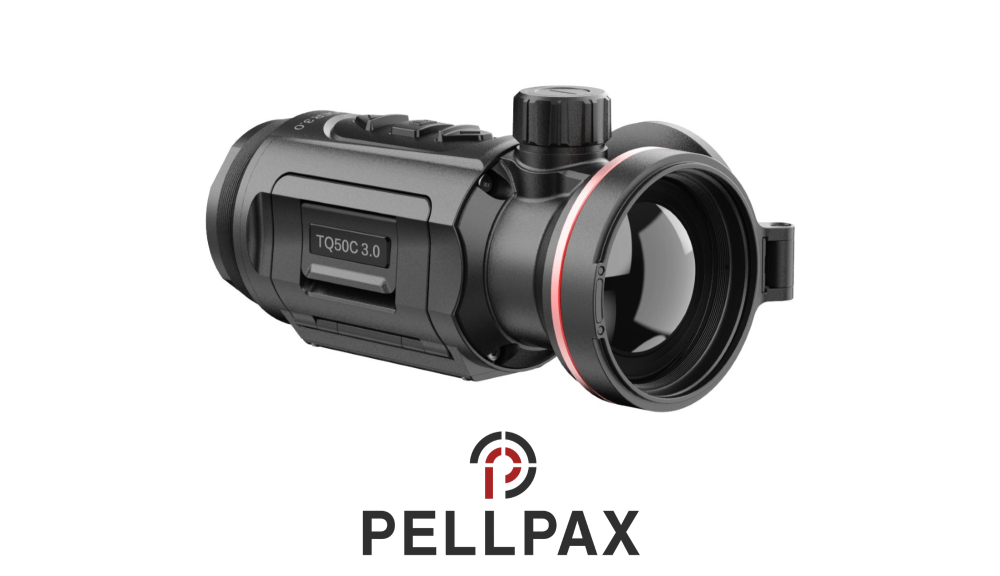

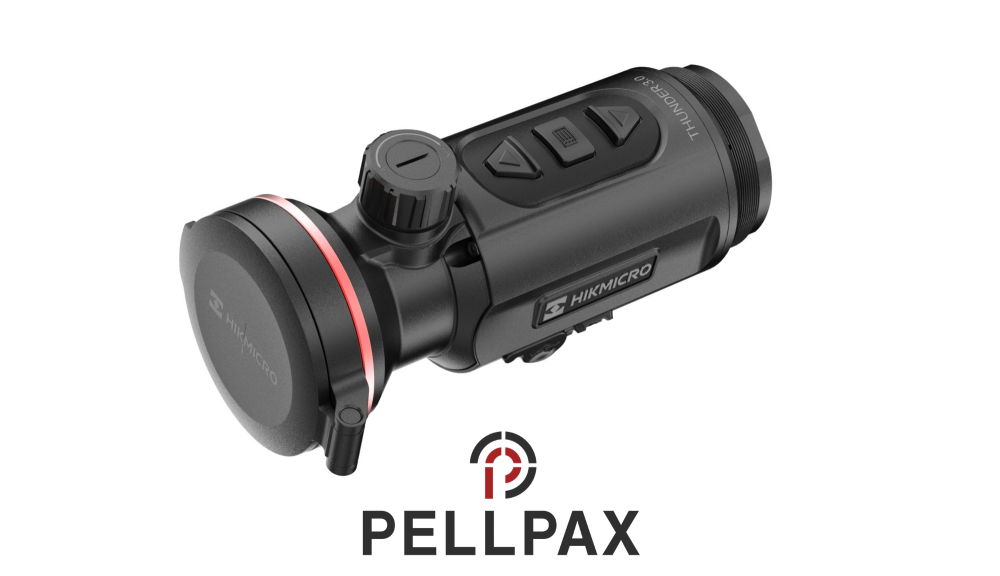

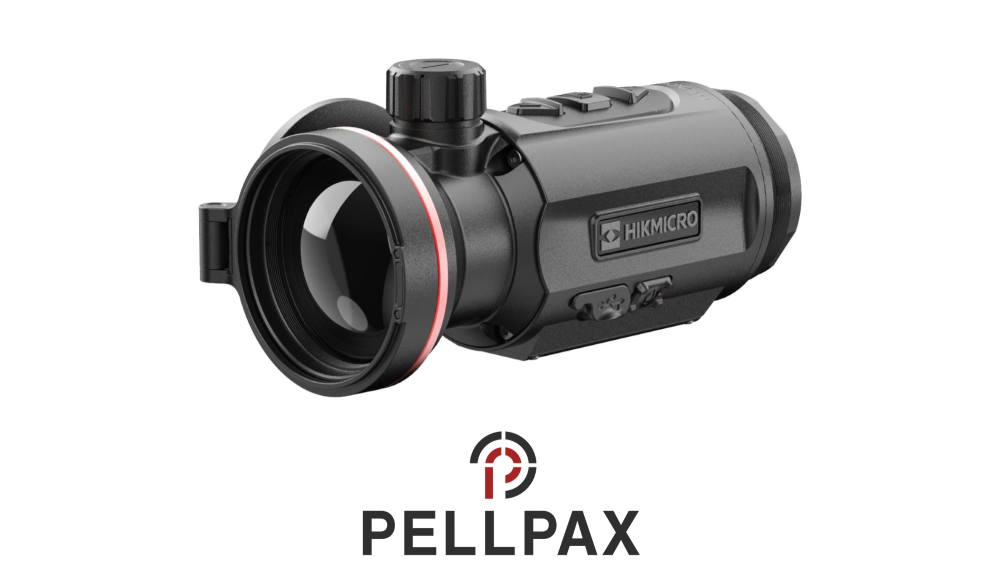

HikMicro Thunder 3.0 Thermal Front Clip-On

The Hikmicro Thunder 3.0 Thermal Front Clip-On is built for hunters and precision shooters who demand superior clarity, range, and reliability in the field. Equipped with an ultra-sensitive <15>

Advanced imaging algorithms, including HSIS and Image Pro 3.0, further enhance contrast and sharpness, ensuring seamless target identification at long distances. With the integrated TQ50CL 3.0 lens and a built-in 1,000 m rangefinder, the Thunder 3.0 can detect heat signatures out to 2,600 m while providing accurate real-time distance readings to eliminate guesswork and improve shot placement.

Designed for seamless integration, it works effortlessly with scopes up to 15× magnification without compromising accuracy. Built from durable magnesium alloy with an IP67 rating, it is recoil-resistant and tough enough to withstand challenging environments. Practical in the field, it offers up to six hours of battery life with fast and simple zeroing via the device or companion app. Delivering a perfect balance of performance, durability, and ease of use, the Hikmicro Thunder 3.0 gives shooters a true edge when it matters most.

Specification

Thermal Module

Type: Uncooled Focal Plane Arrays
Resolution: 384 × 288 (TQ35C) / 640 × 512 (TQ50C)
Frame Rate: 50 Hz
Pixel Pitch: 12 μm
Response Waveband: 8 μm – 14 μm
NETD: <15 mK (25°C, F#=1.0)
Lens (Focal Length): 35 mm F1.0 (TQ35C) / 50 mm F1.0 (TQ50C)
Detection Range: 1,800 m (TQ35C) / 2,600 m (TQ50C)
Focus Mode: Focus Knob
Field of View (H × V): 7.5° × 5.7° / 13.2 m × 9.9 m @ 100 m (TQ35C)
8.8° × 7.0° / 15.4 m × 12.3 m @ 100 m (TQ50C)
Minimum Focusing Distance: 10 m

Optics & Magnification

Base Magnification: 1×
Recommended Day Scope Magnification: 1× – 12× (TQ35C) / 1× – 15× (TQ50C)
Magnification (Monocular Mode): 3.3× – 26.4× (8×) (TQ35C) / 2.8× – 22.4× (8×) (TQ50C)
Exit Pupil: 25 mm
Eye Relief: 20 mm

Display & Imaging

Display: 1920 × 1080, 0.49" OLED
Color Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Brightness Adjustment: Yes
Tone Adjustment: Cold / Warm
Image Enhancement: HSIS (HIKMICRO Shutterless Image System), Image Pro 3.0

Recording & Storage

Video Recording: Yes (On-board)
Audio Recording: Yes
Recoil-Activated Recording: Yes
Snapshot Capture: Yes
Internal Storage: Built-in EMMC, 64 GB
Local Album: Yes

Reticles & Zeroing

Reticle Options: 5 Virtual Reticles
Zeroing Profiles: Yes
Image Calibration: Yes

Power Supply

Battery Type: Replaceable & Rechargeable Li-ion Battery Pack
Battery Life: ≥ 6 h (25°C, hotspot off)
Charging: Supports Direct Charging
External Power Supply: 5 VDC, 2 A (USB-C)

System & Connectivity

Standby Mode: Yes
Hotspot (Wi-Fi): Yes
App Support: Yes

Build & Environmental

Dimensions: 143.4 × 67.5 × 72.9 mm (TQ35C) / 149.4 × 76 × 74.6 mm (TQ50C)
Weight: 460 g (with battery) (TQ35C) / 500 g (with battery) (TQ50C)
Material: Magnesium Alloy Body with Lens Cover
Protection Level: IP67
Operating Temperature: -30°C to +55°C (-22°F to 131°F)
Max Recoil Resistance: 1000 g / 0.4 ms
