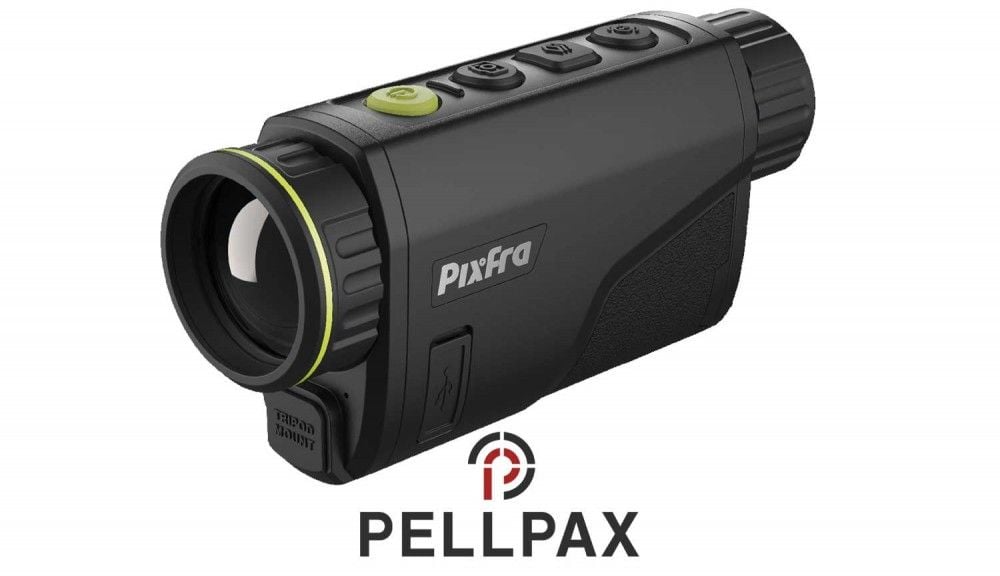

Pixfra Arc A613 Thermal Imaging Monocular

£1364.99
Code: PPIX-PFI-A613

Product Description

Introducing the Pixfra Arc A613: your ultimate thermal imaging solution. Equipped with a highly sensitive 640×512, 12µm, <30mK>

Experience unmatched detection capabilities as the Arc A613 achieves a detection range of up to 670m, ensuring no heat signature goes unnoticed even at long distances. Immerse yourself in stunning thermal imagery presented on its full-color 1440×1080 OLED display.

But the innovation doesn't stop there. The Arc A613 is packed with features designed to elevate your observation experience. Capture every moment with its built-in video recorder, customize your view with multiple color palettes, and effortlessly share your findings through the Pixfra app.

Compact, powerful, and loaded with features, the Pixfra Arc A613 sets new standards in thermal imaging, making it the perfect tool for professionals and enthusiasts alike.

Specification

  • Product Model: PF-A613
  • Detector Type: Vanadium oxide uncooled focal plane detector
  • Effective Pixels: 640×512
  • Pixel Pitch: 12 μm
  • Spectral Range: 8μm～14μm
  • Sensitivity (NETD): ≤30mK@f/1.0
  • Frame Rate: 50 Hz
  • Focal Length: 13mm
  • Field of View: H: 32.3°; V: 25.8°
  • Detection Range: 670m
  • Magnification: 0.875X
  • Color Palettes: 6 (white/black/red/alarm/amber/emerald)
  • Close Focus Distance: 0.5m
  • Digital Zoom: 1X、2X、4X、8X
  • Display Screen Dimensions: 0.41 inch, OLED
  • Screen Resolution: 1440 × 1080
  • Diopter: -4D ~ +5D
  • Eye Relief: 15mm
  • Uniformity Correction: Auto; manual
  • Storage: Built-in EMMC (32 GB)
  • Audio Recording: YES
  • Hot Spot Trace: YES
  • Wi-Fi: YES
  • Power Supply: 5 V Type-C
  • Battery Type: 1 rechargeable Lithium batteries
  • Battery Capacity: 3,200 mAh
  • Battery Operating Life: ≥6.5h
  • Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F)
  • Storage Temperature: –30 °C to +70 °C (–22 °F to +158 °F)
  • Protection: IP67
  • Product Dimensions: 148.5 mm × 42.3 mm × 74.3 mm (L × W × H)
  • Packaging Dimensions: 245 mm × 150 mm × 144 mm (L × W × H)
  • Net Weight: ≤330 g (0.73 lb)(battery excluded)
