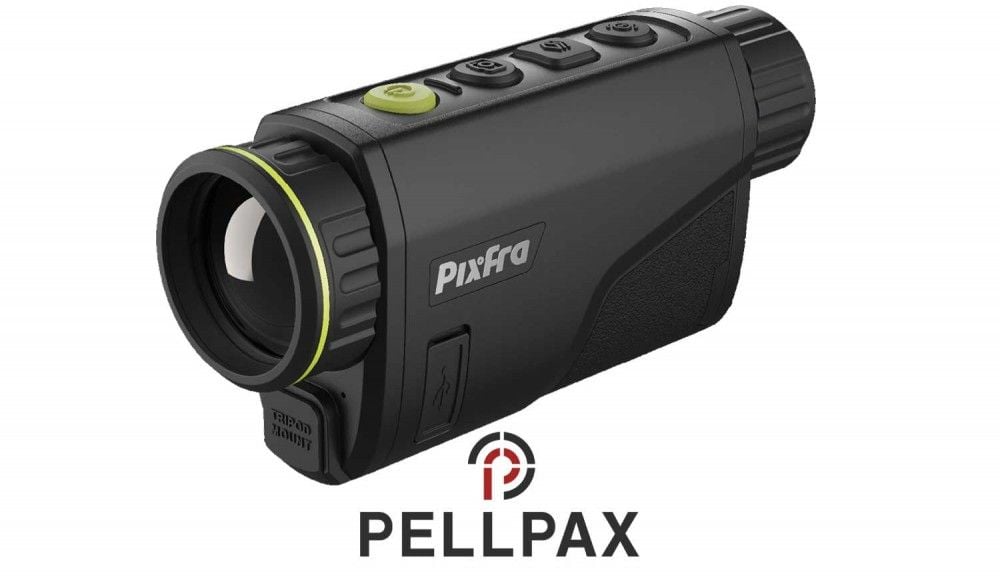

Pixfra Arc A635 Thermal Imaging Monocular

Introducing the Pixfra Arc A635: Your ultimate thermal imaging solution. Boasting a highly sensitive 640×512, 12µm, <30mK>

Experience unparalleled detection capabilities as the Arc A635 achieves a detection range of up to 1800m, effortlessly spotting even the smallest heat signatures at long distances. Immerse yourself in stunning thermal imagery presented on its full-colour 1440×1080 OLED display, capturing every detail with clarity and precision.

But the innovation doesn't stop there. Packed with features designed to enhance your observation experience, the Arc A635 boasts a built-in video recorder, multiple colour palettes, and even screen sharing through the Pixfra app. Whether you're conducting surveillance, wildlife observation, or search and rescue missions, the Pixfra Arc A635 is your indispensable thermal imaging companion.

Specification

• Product Model: PF-A635
• Detector Type: Vanadium oxide uncooled focal plane detector
• Effective Pixels: 640×512
• Pixel Pitch: 12 μm
• Spectral Range: 8μm～14μm
• Sensitivity (NETD): ≤30mK@f/1.0
• Frame Rate: 50 Hz
• Focal Length: 35mm
• Field of View: H: 12.4°; V: 10.0°
• Detection Range: 1800m
• Magnification: 2.36X
• Color Palettes: 6 (white/black/red/alarm/amber/emerald)
• Close Focus Distance: 2m
• Digital Zoom: 1X、2X、4X、8X
• Display Screen Dimensions: 0.41 inch, OLED
• Screen Resolution: 1440 × 1080
• Diopter: -4D ~ +5D
• Eye Relief: 15mm
• Uniformity Correction: Auto; manual
• Storage: Built-in EMMC (32 GB)
• Audio Recording: YES
• Hot Spot Trace: YES
• Wi-Fi: YES
• Power Supply: 5 V Type-C
• Battery Type: 1 rechargeable Lithium batteries
• Battery Capacity: 3,200 mAh
• Battery Operating Life: ≥6h
• Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F)
• Storage Temperature: –30 °C to +70 °C (–22 °F to +158 °F)
• Protection: IP67
• Product Dimensions: 151.8 mm × 42.3 mm × 74.3 mm (L × W × H)
• Packaging Dimensions: 245 mm × 150 mm × 144 mm (L × W × H)
• Net Weight: ≤340 g (0.75 lb)(battery excluded)
