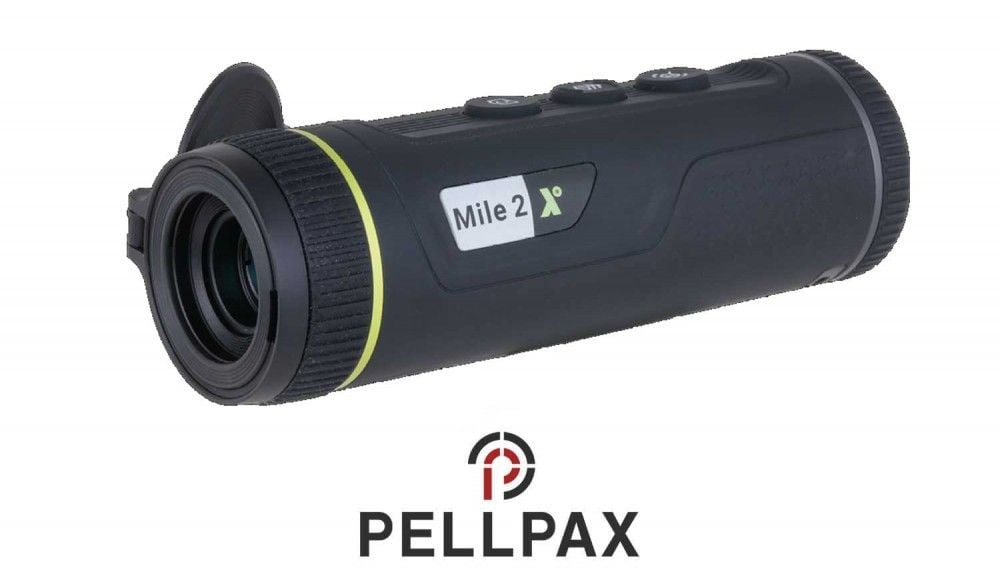

Pixfra Mile 2 M625 Thermal Imaging Monocular

The Mile 2 M625 thermal imaging monocular is an exceptional device, boasting impressive capabilities within its compact and lightweight frame. Equipped with a high-resolution 640×512, 12μm, <25mK>

Notably, its robust Wi-Fi connectivity enables seamless integration with up to four smart devices simultaneously, facilitating effortless group sharing within a range of up to 40 meters. This feature enhances collaboration and situational awareness in various scenarios, making the Mile 2 M625 an invaluable tool for professionals and enthusiasts alike.

Specification

• Thermal Sensor: 640×512, 12μm, <25mK NETD
• Objective Lens: 19mm f1.0
• Spectral Range: 8 μm–14 μm
• Field of View:
  • H: 22.8°; V: 18.3°
  • H: 40.4 m; V: 32.3 m (@100 m)
• Focus Control: Manual
• Close Focus Distance: 1 m (3.28 ft)
• Detection Range: Up to 1000 m
• Magnification: 1.25x
• Frame Rate: 50 Hz
• Display: 800×600, 0.32 inch OLED
• Color Palettes: 6 (white hot/black hot/iron red/alarm/emerald/amber)
• Video Compression: H.264
• Diopter: –5 D to +3 D
• Eye Relief: 15 mm (0.59 inch)
• Exit Pupil: 6 mm (0.24 inch)
• Digital Zoom: 1×, 2×, 4×, 8×
• Video Recording: Yes
• Still Image Capture: Yes
• Wi-Fi Hotspot: Yes
• Hot Spot Tracking: Yes
• Video Distance Measurement: Yes
• FFC Calibration: Auto, Manual, External Correction
• Standby Mode: Yes
• DPC (Defective Pixel Correction): Yes
• Storage: Built-in 16GB
• Battery Type: Rechargeable Lithium Battery
• Battery Life: 6.5 hours (@ 25°C)
• Power Supply: 5 VDC/2 A
• Port: USB Type-C
• Overvoltage Protection: Yes
• Operating Temperature: –30 to +55 °C (–22 to +131 °F)
• Operating Humidity: ≤95%
• Protection Grade: IP67
• Packaging Dimensions: 180.0 mm × 123.0 mm × 96.0 mm (7.09″ × 4.84″ × 3.78″) (L × W × H)
• Product Dimensions: 157.5 mm × 56.6 mm × 50.3 mm (6.20″ × 2.23″ × 1.98″) (L × W × H)
• Gross Weight: 760 g (1.68 lb)
• Net Weight: 320 g (0.71 lb)
