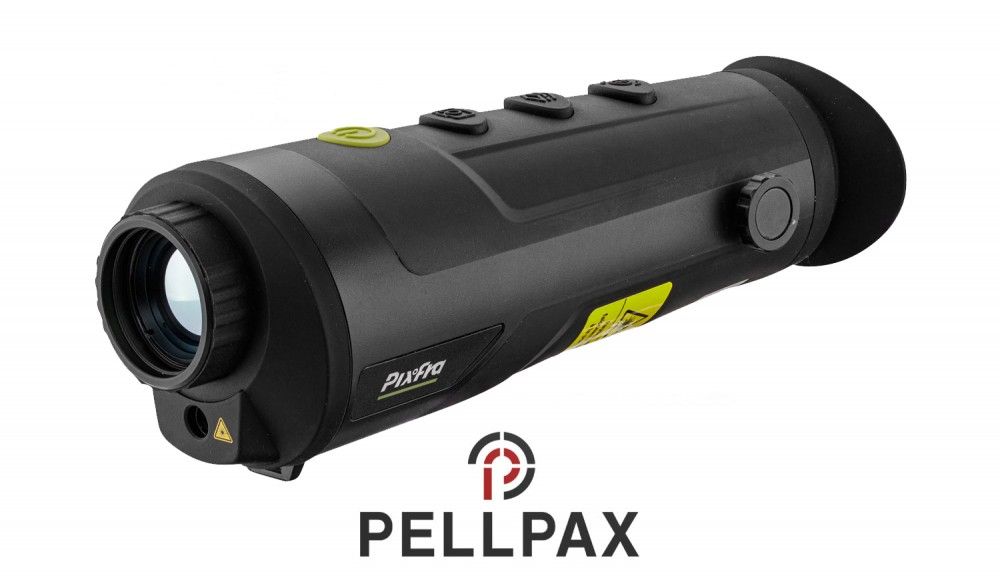

Pixfra Ranger R425 Thermal Imaging Monocular

Introducing the Pixfra Ranger R425, a thermal imaging marvel equipped with a high-performing 384×288, 12µm thermal sensor and a 25mm f1.0 objective lens. This powerhouse offers a detection range of up to 1300m, delivering exceptional thermal imagery even in the darkest environments.

Its advanced image processing algorithms, coupled with a 1440×1080 display, provide a consistently clear and defined picture. With an adjustable dioptre, stadiametric rangefinder, 7.5-hour battery life, and six versatile color palettes, the Ranger R425 promises an unparalleled viewing experience. Its lightweight yet rugged design ensures durability and resilience, making it a reliable companion in any environment.

Specification

• Detector : Vanadium Oxide Uncooled Focal Plane Detector

• Sensor : 384×288, 12µm, <30mK NETD

• Frame Rate : 50Hz

• Detection Range : 1300m

• Lens : 25mm f1.0

• Magnification : 2.34x

• FOV : 11.0°x8.2°

• Digital Zoom : 1 ×, 2 ×, 4 ×, 8 ×

• Display Screen Dimensions : 0.41 inch, OLED

• Screen Resolution : 1440×1080

• Close Focus Distance : 0.5m (1.64ft)

• Eye Relief : 25mm

• Dioptre : -4D to +5D

• Fire Detection : Yes

• Cold/Hot Spot Trace : Yes

• Wi-Fi : Yes

• USB Port : USB-C

• Proximity Sensor : Yes

• Power Supply : 1 rechargeable Lithium battery

• Battery Capacity : 3,200mAh

• Operating Time : ≥7.5h

• Operating Temperature : –30 °C to +50 °C (–22 °F to +122 °F)

• Storage Temperature : –30 °C to +65 °C (–22 °F to +149 °F)

• Protection Class : IP67

• Dimensions : 190.5×64.7×69.6mm

• Weight : ≤400g
