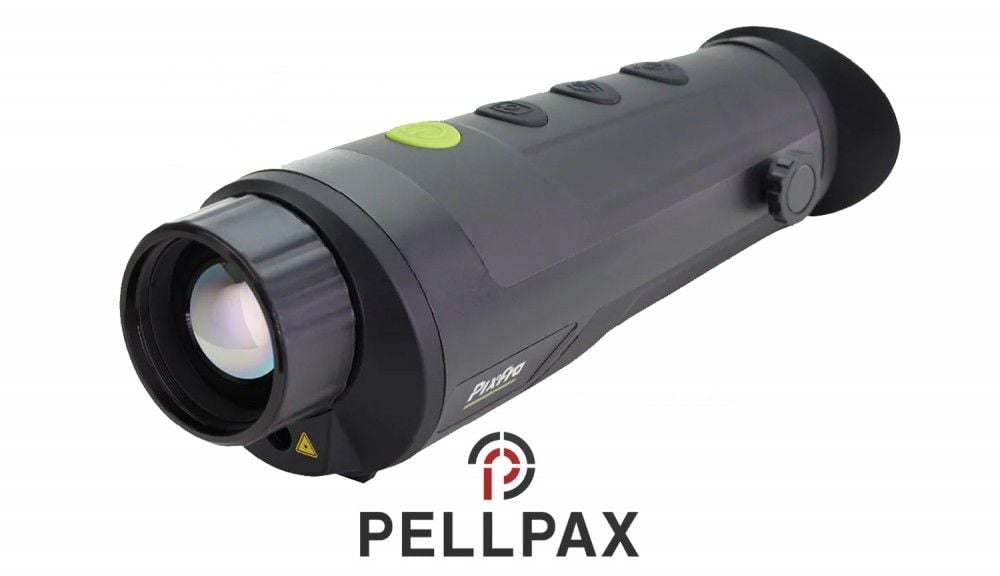

Pixfra Ranger R435 Thermal Imaging Monocular

Introducing the Pixfra Ranger R435, a thermal imaging powerhouse equipped with a cutting-edge Vanadium Oxide Uncooled Focal Plane Detector. Boasting a high-resolution 384×288, 12µm sensor with an impressive <30mK>

With a remarkable detection range of 1800m and a 35mm f1.0 lens offering 3.27x magnification, the R435 ensures unparalleled clarity. Its versatile features include digital zoom options, OLED display, and advanced fire and hot spot detection. Compact and rugged with a lengthy 7.5-hour operating time, it's ready to conquer extreme environments.

Specification

• Detector : Vanadium Oxide Uncooled Focal Plane Detector

• Sensor : 384×288, 12µm, <30mK NETD

• Frame Rate : 50Hz

• Detection Range : 1800m

• Lens : 35mm f1.0

• Magnification : 3.27x

• FOV : 17.4°x14.0°

• Digital Zoom : 1 ×, 2 ×, 4 ×, 8 ×

• Display Screen Dimensions : 0.41 inch, OLED

• Screen Resolution : 1440×1080

• Close Focus Distance : 2m (6.56ft)

• Eye Relief : 35mm

• Dioptre : -4D to +5D

• Fire Detection : Yes

• Cold/Hot Spot Trace : Yes

• Wi-Fi : Yes

• USB Port : USB-C

• Proximity Sensor : Yes

• Power Supply : 1 rechargeable Lithium battery

• Battery Capacity : 3,200mAh

• Operating Time : ≥7.5h

• Operating Temperature : –30 °C to +50 °C (–22 °F to +122 °F)

• Storage Temperature : –30 °C to +65 °C (–22 °F to +149 °F)

• Protection Class : IP67

• Dimensions : 199.8×64.7×69.6mm

• Weight : ≤400g
