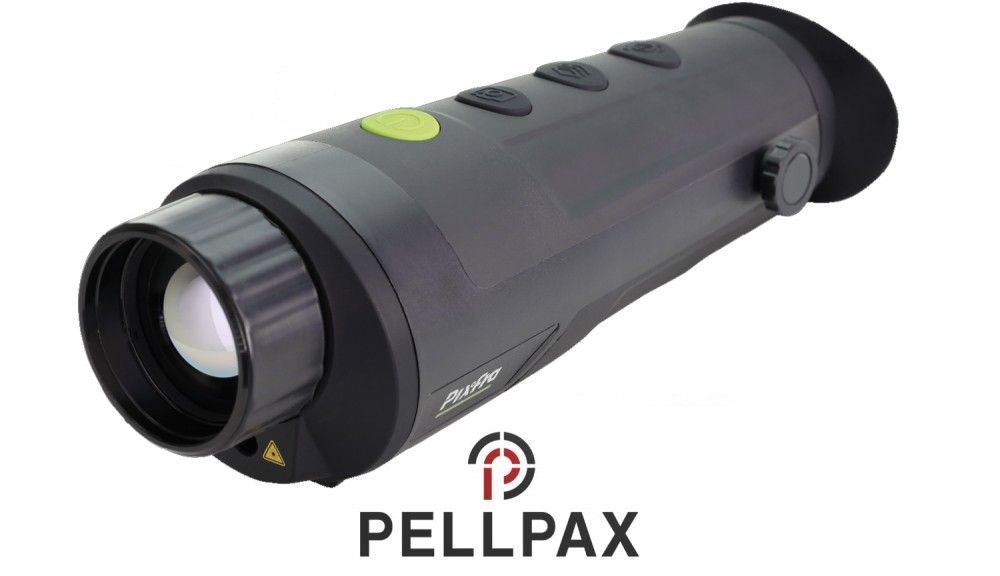

Pixfra Ranger R635 Thermal Imaging Monocular

Introducing the Pixfra R635, an advanced thermal imaging marvel featuring a Vanadium Oxide Uncooled Focal Plane Detector. With a high-resolution 640×512, 12µm sensor boasting <30mK>

Achieving an impressive 1800m detection range and 35mm f1.0 lens providing 2.05x magnification, the R635 ensures precise and detailed visuals. Offering versatile digital zoom options, an OLED display, and cutting-edge fire and hot spot detection, this device is a pinnacle of thermal technology. Compact, durable, and lightweight, it guarantees over 7.5 hours of efficient operation in diverse environments.

Specification

• Detector: Vanadium Oxide Uncooled Focal Plane Detector

• Sensor : 640×512, 12µm, <30mK NETD

• Frame Rate : 50Hz

• Detection Range : 1800m

• Lens : 35mm f1.0

• Magnification : 2.05×

• FOV : 12.4°x10.0°

• Digital Zoom : 1 ×, 2 ×, 4 ×, 8 ×

• Display Screen Dimensions : 0.41 inch, OLED

• Screen Resolution : 1440×1080

• Close Focus Distance : 2m (6.56ft)

• Eye Relief : 35mm

• Dioptre : -4D to +5D

• Fire Detection : Yes

• Cold/Hot Spot Trace : Yes

• Wi-Fi : Yes

• USB Port : USB-C

• Proximity Sensor : Yes

• Power Supply : 1 rechargeable Lithium battery

• Battery Capacity : 3,200mAh

• Operating Time : ≥7.5h

• Operating Temperature : –30 °C to +50 °C (–22 °F to +122 °F)

• Storage Temperature : –30 °C to +65 °C (–22 °F to +149 °F)

• Protection Class : IP67

• Dimensions : 199.8×64.7×69.6mm

• Weight : ≤400g
