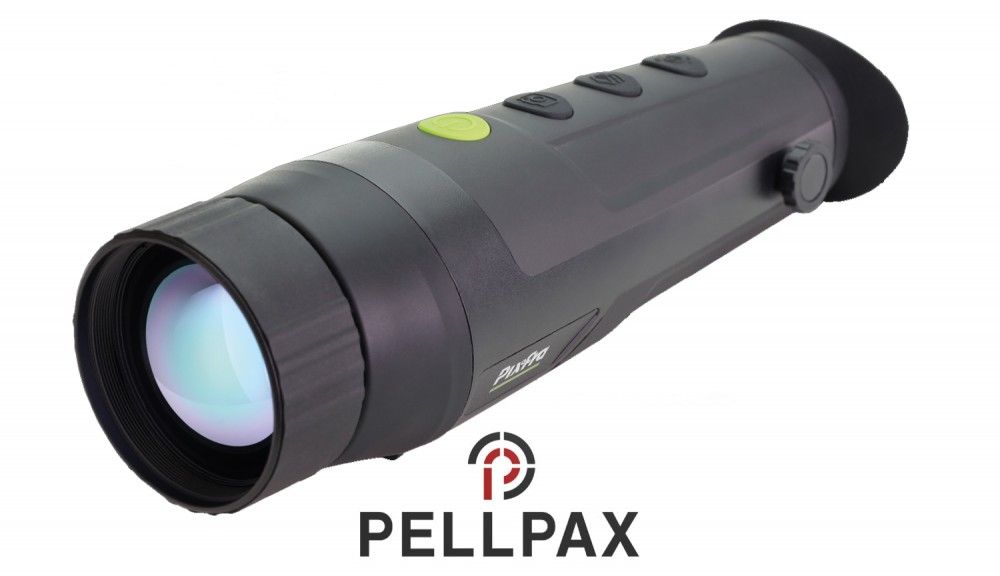

Pixfra Ranger R650 Thermal Imaging Monocular

Introducing the Pixfra 650, a state-of-the-art thermal imaging marvel featuring a Vanadium Oxide Uncooled Focal Plane Detector. With a remarkable 640×512, 12µm sensor boasting <30mK>

Offering versatile digital zoom options, an OLED display, and cutting-edge fire and hot spot detection, this device stands at the forefront of thermal technology. Despite its power, it remains compact and durable, ready for prolonged use in diverse environments.

Specification

• Detector: Vanadium Oxide Uncooled Focal Plane Detector

• Sensor: 640×512, 12µm, <30mK NETD

• Frame Rate: 50Hz

• Detection Range: 2600m

• Lens: 50mm f1.0

• Magnification: 2.92×

• FOV: 8.7°x7.0°

• Digital Zoom: 1 ×, 2 ×, 4 ×, 8 ×

• Display Screen Dimensions: 0.41 inch, OLED

• Screen Resolution: 1440×1080

• Close Focus Distance: 1.5m (4.92ft)

• Eye Relief: 50mm

• Dioptre: -4D to +5D

• Fire Detection: Yes

• Cold/Hot Spot Trace: Yes

• Wi-Fi: Yes

• USB Port: USB-C

• Proximity Sensor: Yes

• Power Supply: 1 rechargeable Lithium battery

• Battery Capacity: 3,200mAh

• Operating Time: ≥6.5h

• Operating Temperature: –30 °C to +50 °C (–22 °F to +122 °F)

• Storage Temperature: –30 °C to +65 °C (–22 °F to +149 °F)

• Protection Class: IP67

• Dimensions: 217× 64.7× 69.6mm

• Weight: ≤495g
