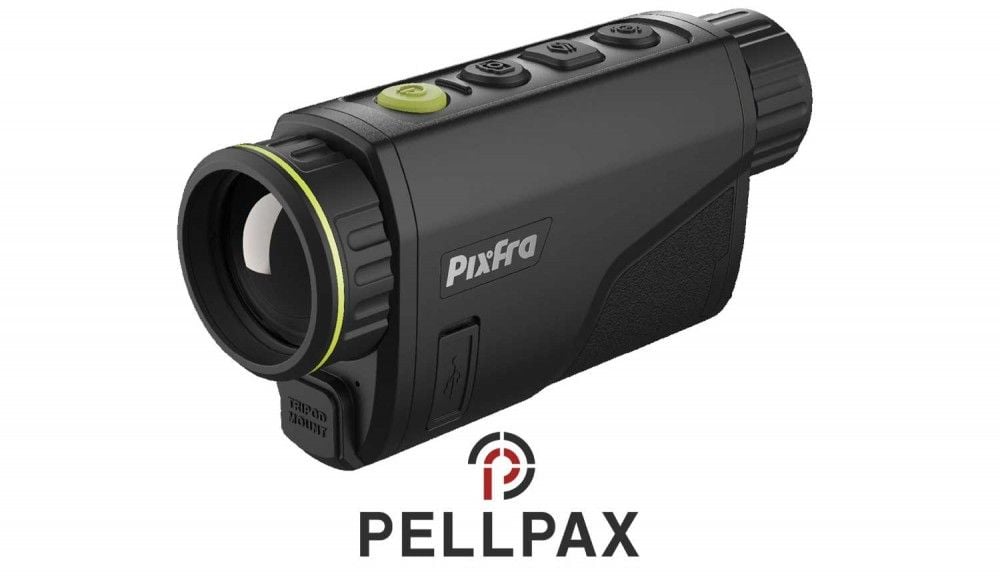

Pixfra Arc A419 Thermal Imaging Monocular

Code: PPIX-PFI-A419

Product Description

Introducing the Pixfra Arc A419: your ultimate companion for compact, lightweight, and cost-effective thermal observation. Equipped with a highly sensitive 384×288, 12µm, <30mK>

Experience the world through the lens of the Pixfra Arc A419 as it presents a breath taking thermal picture on its full-colour 1440×1080 OLED display. Whether you're conducting surveillance, wildlife observation, or search and rescue missions, this device ensures clarity and precision in every scenario.

But the Arc A419 isn't just about exceptional performance; it's designed to elevate your observation experience. With built-in video recording capabilities, you can capture every moment for later review and analysis. Choose from multiple colour palettes to tailor your viewing experience to your preferences. Plus, with screen sharing functionality through the Pixfra app, you can easily collaborate and share your findings with colleagues or friends in real-time.

Compact, lightweight, and affordable, the Pixfra Arc A419 is the perfect thermal imaging solution for professionals and enthusiasts alike. Whether you're exploring the great outdoors or conducting critical operations, trust the Arc A419 to deliver unparalleled performance and reliability.


  • Frame Rate : 50 Hz
  • Focal Length : 19mm
  • Field of View : H: 14.4°; V: 10.8°
  • Detection Range : 1000m
  • Magnification : 2.1X
  • Colour Palettes : 6 (white/black/red/alarm/amber/emerald)
  • Close Focus Distance : 2m
  • Digital Zoom : 1X, 2X, 4X, 8X
  • Display Screen Dimensions : 0.41 inch, OLED
  • Screen Resolution : 1440 × 1080
  • Diopter : -4D ~ +5D
  • Eye Relief : 15mm
  • Uniformity Correction : Auto; manual
  • Storage : Built-in EMMC (32 GB)
  • Audio Recording : YES
  • Hot Spot Trace : YES
  • Wi-Fi : YES
  • Power Supply : 5 V Type-C
  • Battery Type : 1 rechargeable Lithium batteries
  • Battery Capacity : 3,200 mAh
  • Battery Operating Life : ≥7.5h
  • Operating Temperature : –30 °C to +60 °C (–22 °F to +140 °F)
  • Storage Temperature : –30 °C to +70 °C (–22 °F to +158 °F)
  • Protection : IP67
  • Product Dimensions : 148.5 mm × 42.3 mm × 74.3 mm (L × W × H)
  • Packaging Dimensions : 245 mm × 150 mm × 144 mm (L × W × H)
  • Net Weight : ≤330 g (0.73 lb)(battery excluded)
