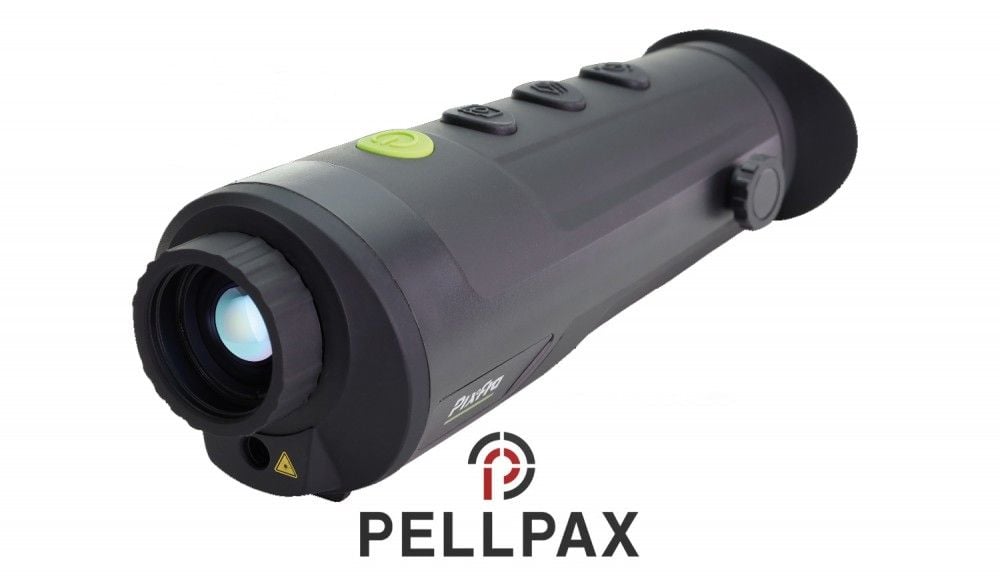

Pixfra Ranger R625 Thermal Imaging Monocular

Introducing the Pixfra Ranger R625, a cutting-edge thermal imaging marvel featuring a Vanadium Oxide Uncooled Focal Plane Detector. Boasting an impressive 640×512, 12µm sensor with <30mK>

With a 1300m detection range and a 25mm f1.0 lens offering 1.46x magnification, the R625 ensures optimal clarity. It offers flexible digital zoom options, OLED display, and advanced fire and hot spot detection. Compact, durable, and lightweight at under 400g, it's designed for extended 7.5-hour use in challenging environments, setting a new standard in thermal imaging technology.

Specification

• Detector : Vanadium Oxide Uncooled Focal Plane Detector

• Sensor : 640×512, 12µm, <30mK NETD

• Frame Rate : 50Hz

• Detection Range : 1300m

• Lens : 25mm f1.0

• Magnification : 1.46x

• FOV : 17.4°x14.0°

• Digital Zoom : 1 ×, 2 ×, 4 ×, 8 ×

• Display Screen Dimensions : 0.41 inch, OLED

• Screen Resolution : 1440×1080

• Close Focus Distance : 0.5m (1.64ft)

• Eye Relief : 25mm

• Dioptre : -4D to +5D

• Fire Detection : Yes

• Cold/Hot Spot Trace : Yes

• Wi-Fi : Yes

• USB Port : USB-C

• Proximity Sensor : Yes

• Power Supply : 1 rechargeable Lithium battery

• Battery Capacity : 3,200mAh

• Operating Time : ≥7.5h

• Operating Temperature : –30 °C to +50 °C (–22 °F to +122 °F)

• Storage Temperature : –30 °C to +65 °C (–22 °F to +149 °F)

• Protection Class : IP67

• Dimensions : 190.5×64.7×69.6mm

• Weight : ≤400g
