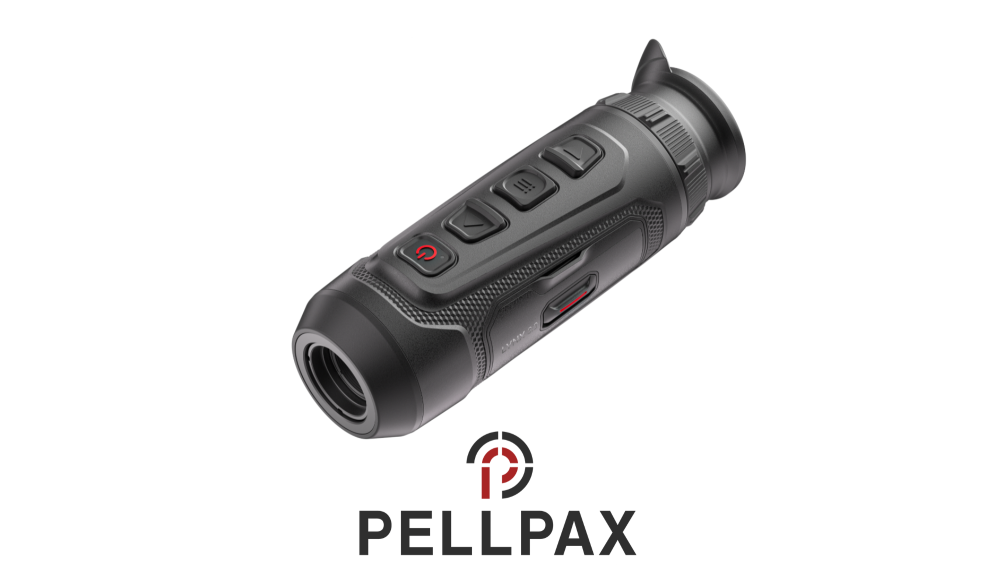

HikMicro Lynx 3.0 10mm LE10 - Thermal Monocular

The HIKMICRO Lynx 3.0 LE10 is purpose-built for professionals and outdoor users who need reliable thermal performance in a compact, high-value package. Featuring a 256 × 192 thermal detector paired with a 9.7mm F1.0 lens, the LE10 delivers a 1.4× base magnification, a wide 18° field of view, and a detection range of up to 500 metres—ideal for close- to mid-range observation.

Advanced AI-powered Image Pro 3.0 and Zoom Pro algorithms enhance detail, contrast, and stability, ensuring sharp imagery even in demanding conditions. The HIKMICRO Shutterless Image System (HSIS) provides smooth, silent image processing with no frame freeze, allowing uninterrupted viewing during critical tasks such as wildlife monitoring, surveillance, and search and rescue.

Designed for portability without compromise, the LE10 weighs just 291.5 g, making it truly pocket-sized for extended field use. A replaceable 18650 battery delivers up to 5.5 hours of operation at -20°C, ensuring dependable performance in cold and challenging environments.

For users seeking a compact thermal monocular that combines precision, durability, and exceptional value, the Lynx 3.0 LE10 sets a new benchmark in entry-level thermal imaging.

Key Specifications:
256×192 thermal detector with NETD < 20> 9.7mm F1.0 lens with 500m detection range
AI-powered Image Pro 3.0 and Zoom Pro algorithms
HIKMICRO Shutterless Image System (HSIS)
0.39” 1024×768 AMOLED display
Up to 5.5 hours’ operation at -20°C
Lightweight, pocket-sized 291.5g design

Specification

Max Resolution: 256 × 192
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm – 14 μm
NETD: Less than 20 mK (@25°C, F#=1.0)
Lens (Focal Length): 9.7 mm, F1.0
Focus Mode: Focus Free
Minimum Focusing Distance: 3.4 m
Magnification: 1.4× – 11.2× (8× digital zoom)
Field of View (H × V): 18.0° × 13.6° / 31.7 m × 23.8 m @ 100 m
Detection Range: Up to 500 m
Display: 0.39" AMOLED, 1024 × 768
Contrast Adjustment: Yes
Brightness Adjustment: Yes
Colour Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil: 6 mm
Eye Relief: 20 mm
Diopter Adjustment: -5 D to +3 D
Tone Adjustment: Cold, Warm
Zoom Pro: Yes
HSIS (HIKMICRO Shutterless Image System): Yes
Image Pro 3.0: Yes
Sync Pro: Yes
Storage: Built-in EMMC (64 GB)
Record Video: Yes
Capture Snapshot: Yes
Local Album: Yes
Standby Mode: Yes
PIP: Yes
Hotspot: 2.4 / 5 GHz WiFi Waveband
Hot Track: Yes
Distance Measurement: Yes
Audio Recording: Yes
Battery Type: Replaceable & rechargeable 18650 battery
Protection Level: IP67
Weight: 291.5 g
