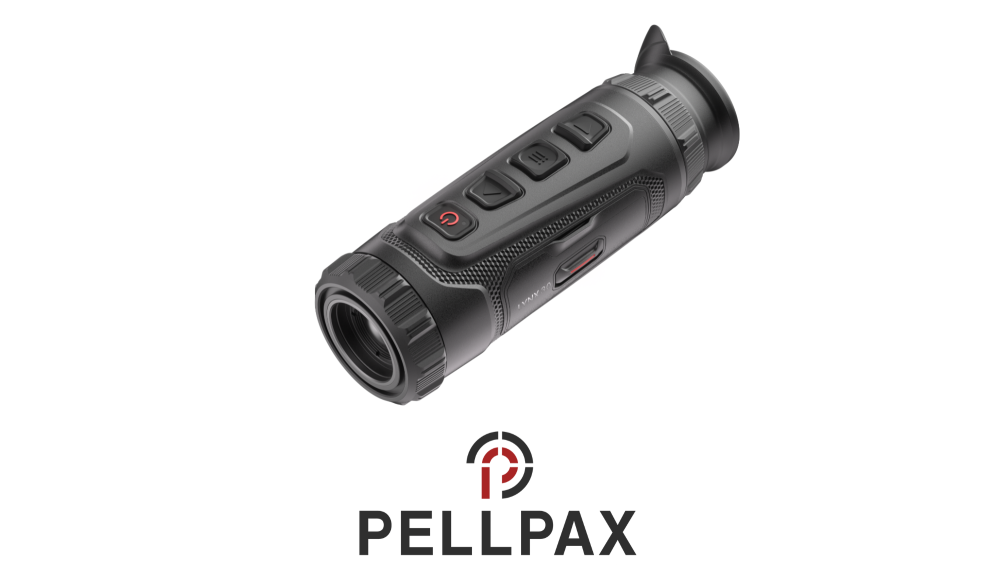

HikMicro Lynx 3.0 19mm LH19 - Thermal Monocular

The HIKMICRO Lynx 3.0 LH19 redefines what’s possible from an entry-level thermal imager, delivering professional-grade performance in a compact, lightweight design. Built around a high-quality 384 × 288 thermal detector and a fast 19 mm F1.0 lens, the LH19 offers a 1.9× base magnification, a wide 13.8° field of view, and an impressive detection range of up to 900 metres, making it ideal for scanning, identification, and observation across varied environments.

Image quality is enhanced by HIKMICRO’s advanced AI-powered Image Pro 3.0 and Zoom Pro algorithms, which significantly improve contrast and fine detail recognition. The integrated HIKMICRO Shutterless Image System (HSIS) ensures smooth, uninterrupted viewing without image freezing, allowing for discreet, continuous monitoring when it matters most.

Designed for real-world use, the Lynx 3.0 LH19 is compact, ergonomic, and weighs just 331 grams, making it comfortable to carry and operate over long sessions. Power is supplied by a replaceable 18650 battery, delivering up to 4.5 hours of runtime even in extreme conditions down to -20°C. Robust, reliable, and highly capable, the Lynx 3.0 LH19 is a premium thermal imaging solution for professionals who demand clarity, portability, and performance.

Key Specifications:
Sensor resolution: 384 × 288 VOx
Frame rate: 50 Hz
Lens: 19 mm, F1.0
Magnification: 1.9× – 15.2× (8×)
Detection range: up to 900 m
Display: 1920 × 1080 AMOLED
NETD: < 15> Battery: replaceable 18650 rechargeable
Protection rating: IP67
Weight: 331 g (with battery)

Specification

Image sensor: VOx uncooled focal plane arrays
Max. resolution: 384 × 288
Frame rate: 50 Hz
Pixel interval: 12 μm
Response waveband: 8 μm to 14 μm
NETD: Less than 15 mK (@25°C), F#=1.0
Lens (focal length): 19 mm, F1.0
Focus mode: Focus wheel
Minimum focusing distance: 3 m
Magnification: 1.9× – 15.2× (8×)
Field of view (H × V), degrees / m @ 100 m: 13.8° × 8.4° / 24.2 m × 14.7 m
Detection range: 900 m
Display: 1920 × 1080, 0.49 inch, AMOLED
Contrast adjustment: Yes
Brightness adjustment: Yes
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit pupil: 6 mm
Eye relief: 20 mm
Diopter (range): -5 D to +3 D
Tone adjustment: Cold, Warm
Zoom Pro: Yes
HSIS (HIKMICRO Shutterless Image System): Yes
Image Pro 3.0: Yes
Sync Pro: Yes
Battery type: Replaceable and rechargeable 18650 battery
Protection level: IP67
Weight: 331 g (with battery)
