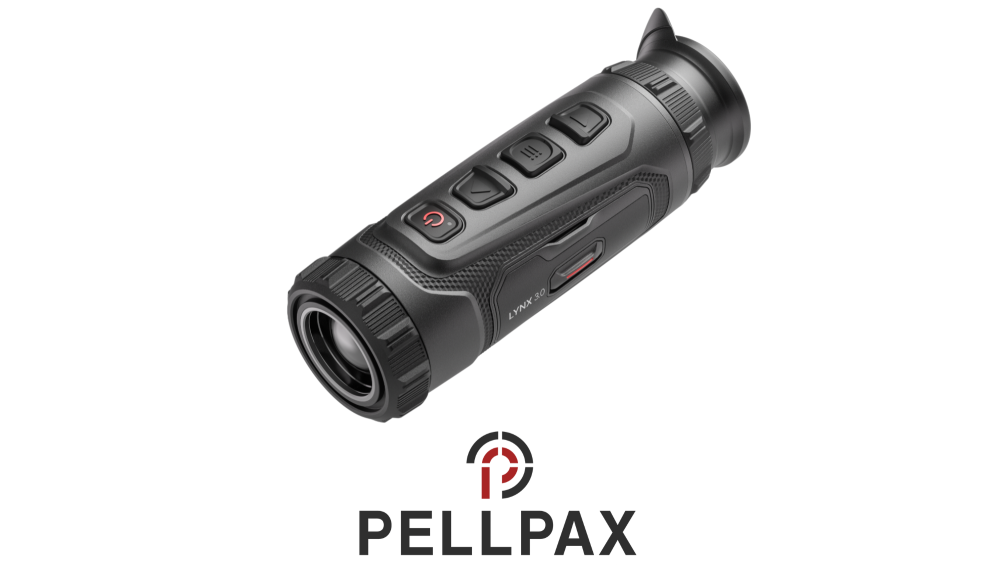

HikMicro Lynx 3.0 25mm LH25 - Thermal Monocular

The HIKMICRO Lynx 3.0 LH25 is engineered for professionals who demand extended detection range and precise target identification. Featuring a high-performance 384 × 288 thermal detector paired with a larger 25 mm F1.0 lens, the LH25 delivers a 2.5× base magnification, a focused 10.5° field of view, and an impressive detection range of up to 1,200 metres. This combination makes it particularly effective for open terrain, long-range scanning, and technical observation tasks.

Advanced AI-driven Image Pro 3.0 and Zoom Pro algorithms enhance clarity, contrast, and detail recognition across varying environmental conditions. Complementing this is HIKMICRO’s Shutterless Image System (HSIS), which provides smooth, silent and uninterrupted imaging, ideal for tactical operations or wildlife observation where discretion is essential.

Despite its enhanced optical performance, the Lynx 3.0 LH25 remains exceptionally lightweight at just 328.5 grams, ensuring comfortable handling during extended use. Power is supplied by a replaceable 18650 battery, delivering up to 4.5 hours of reliable runtime even in extreme temperatures down to -20°C. Rugged, efficient, and purpose-built, the LH25 sets a new benchmark for long-range thermal imaging in a compact, professional-grade package.

Key Specifications:
Sensor resolution: 384 × 288 VOx
Frame rate: 50 Hz
Lens: 25 mm, F1.0
Magnification: 2.5× – 20× (8×)
Detection range: up to 1200 m
Display: 1920 × 1080 AMOLED
NETD: < 15> Battery: replaceable 18650 rechargeable
Protection rating: IP67
Weight: 328.5 g (with battery)

Specification

Image sensor: VOx uncooled focal plane arrays
Max. resolution: 384 × 288
Frame rate: 50 Hz
Pixel interval: 12 μm
Response waveband: 8 μm to 14 μm
NETD: Less than 15 mK (@25°C), F#=1.0
Lens (focal length): 25 mm, F1.0
Focus mode: Focus wheel
Minimum focusing distance: 3 m
Magnification: 2.5× – 20× (8×)
Field of view (H × V), degrees / m @ 100 m: 10.5° × 6.4° / 18.4 m × 11.2 m
Detection range: 1200 m
Display: 1920 × 1080, 0.49 inch, AMOLED
Contrast adjustment: Yes
Brightness adjustment: Yes
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit pupil: 6 mm
Eye relief: 20 mm
Diopter (range): -5 D to +3 D
Tone adjustment: Cold, Warm
Zoom Pro: Yes
HSIS (HIKMICRO Shutterless Image System): Yes
Image Pro 3.0: Yes
Sync Pro: Yes
Battery type: Replaceable and rechargeable 18650 battery
Protection level: IP67
Weight: 328.5 g (with battery)
